Single Jacket ADSS Optical Aerial Fiber Cable Single Mode Aramid Yarn Strength

Product Title

Factory Price: Single Mode ADSS Optical Fiber Cable with Aramid Yarn Strength

What is ADSS Cable?

ADSS (All-Dielectric Self-Supporting) optical fiber cable is a specialized cable designed for aerial installations on utility power lines. It is entirely non-metallic, allowing it to be installed in high-voltage environments without the risk of conductivity. The cable's construction provides robust self-support between structures, making it an efficient and cost-effective alternative to OPGW and OPAC cables.

Structure and Design

Our ADSS cable features a compact, stranded core design. The optical fibers are housed within loose tubes made of high-modulus plastic and filled with a water-resistant compound to prevent moisture ingress. A non-metallic Fiber Reinforced Plastic (FRP) central strength member provides core stability. The cable's exceptional tensile strength is achieved by surrounding the core with aramid yarn, and it is finished with a durable PE or AT sheath.

Key Features

• Non-Conductive: Constructed without metallic components, ensuring safe installation on live-line power infrastructure.

• Cost-Effective Installation: As a self-supporting cable, it simplifies installation, reducing the need for a separate messenger wire.

• Superior Mechanical Strength: Engineered to withstand external loads, providing high tensile performance and resistance to extreme weather conditions.

• Optimized Performance: The aramid yarn reinforcement enhances both tensile strength and temperature stability.

• Customizable: Our designs can be tailored to meet specific application and span requirements.

Applications

The choice of outer sheath is determined by the power line's voltage:

• PE (Polyethylene) Sheath: Recommended for overhead power lines under 110kV.

• AT (Anti-Tracking) Sheath: Designed for power lines equal to or over 110kV to prevent damage from electrical tracking.

The quantity of aramid yarn and the stranding process are specifically designed to meet the demands of various span lengths.

Standards Compliance

Our ADSS cables are manufactured to the highest industry standards, complying with both IEEE P 1222 and IEC 60794-1.

Details picture shows

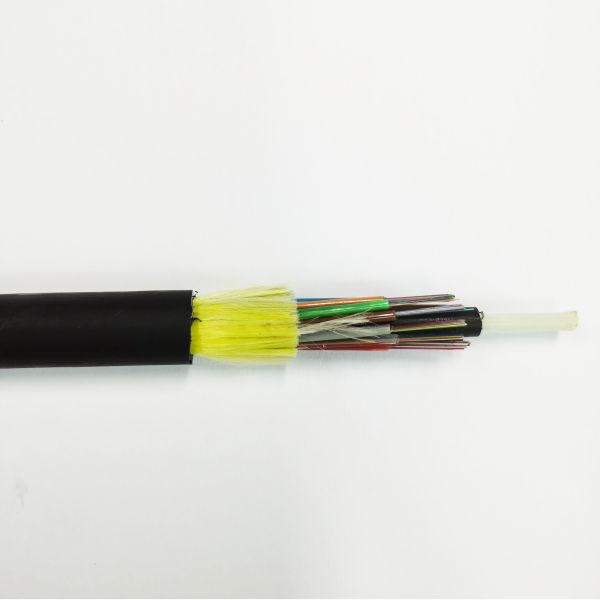

single jacket ADSS fiber cable

double jacket ADSS fiber optic cable

Packing:

FAQ

1. Are you a trading company or a manufacturer? We are a specialized manufacturer with over 10 years of experience in the research, development, and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou, and we welcome you to visit us.

2. How do you ensure quality? Quality is our top priority. Every fiber is thoroughly tested after production is complete, and we conduct a final inspection before shipment. After a price is confirmed, we can provide free samples for you to verify our quality firsthand.

3. Do you accept small orders? Yes, we do. We understand that new projects often start with small orders and we are committed to supporting our customers' growth.

4. What is your delivery time? Our standard delivery time is approximately 3-7 business days, depending on the order quantity. We guarantee that your order will be shipped as soon as possible after payment is received.

5. Do you offer OEM services? Yes, we welcome OEM projects. We can print your logo on the products and are open to any ideas you may have for customization.

6. Do your raw materials have certifications? We maintain long-term partnerships with raw material suppliers who are certified with ISO9001 and RoHS standards to ensure the highest quality components for our products.

ADSS aerial fiber optic cable

single mode optical cable with aramid yarn

single jacket ADSS fiber cable

Single Jacket ADSS Optical Aerial Fiber Cable Single Mode Aramid Yarn Strength Images
